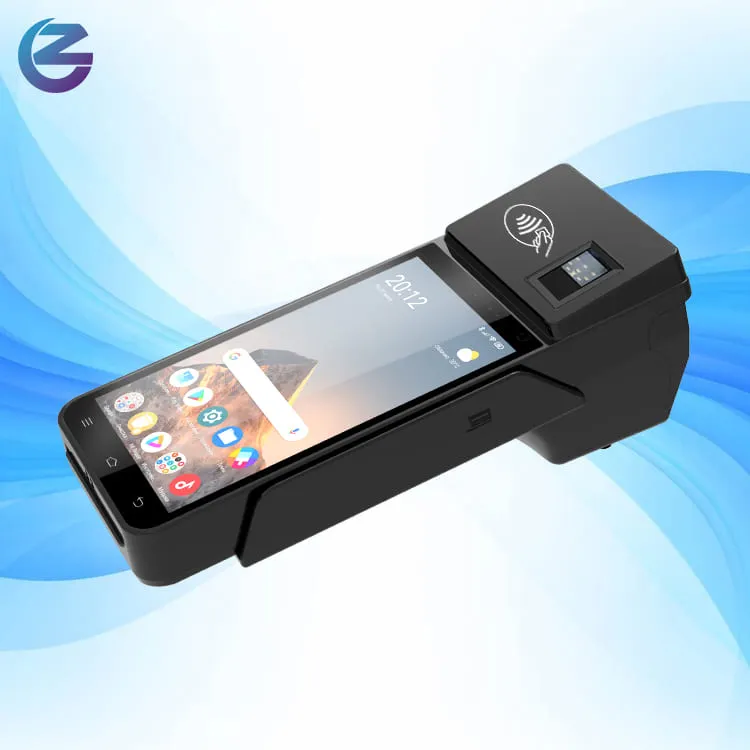

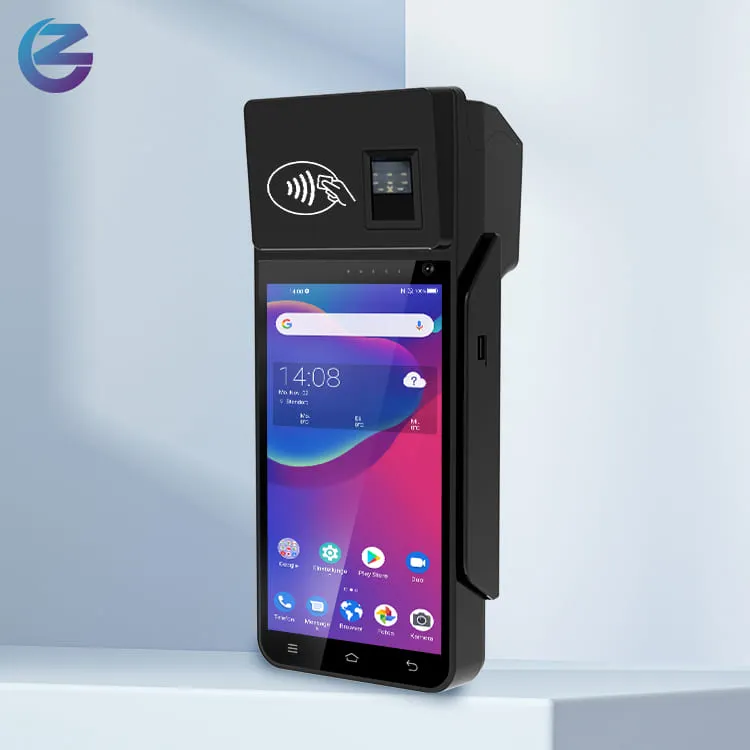

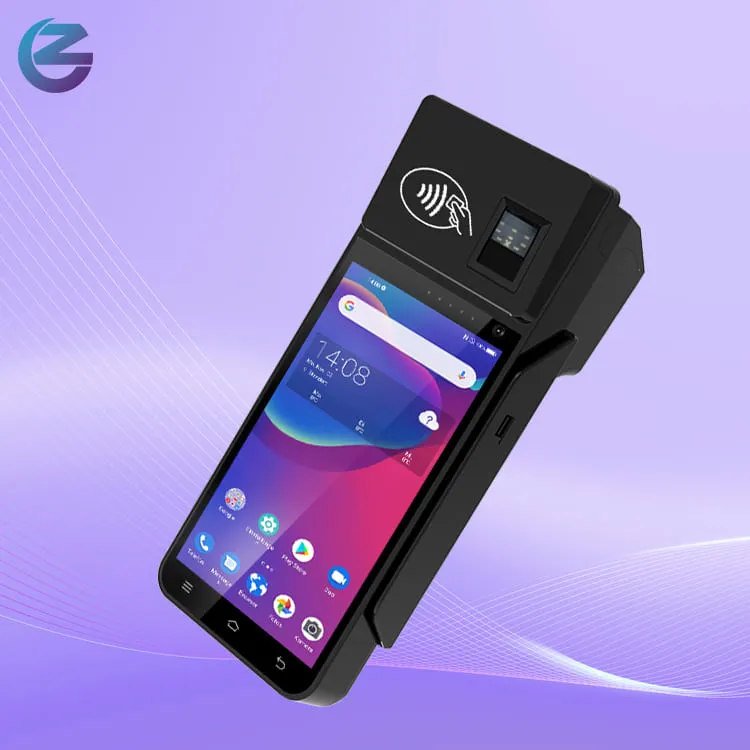

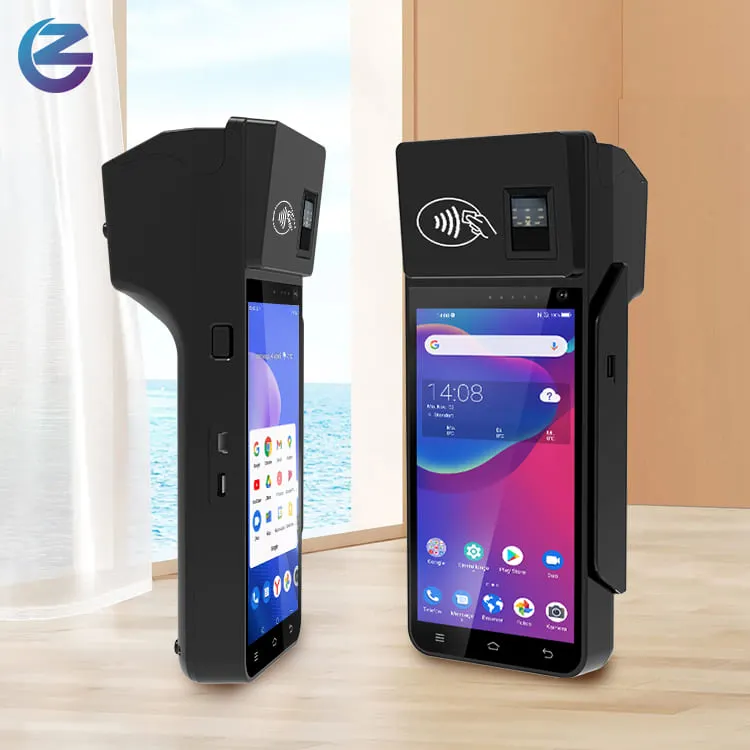

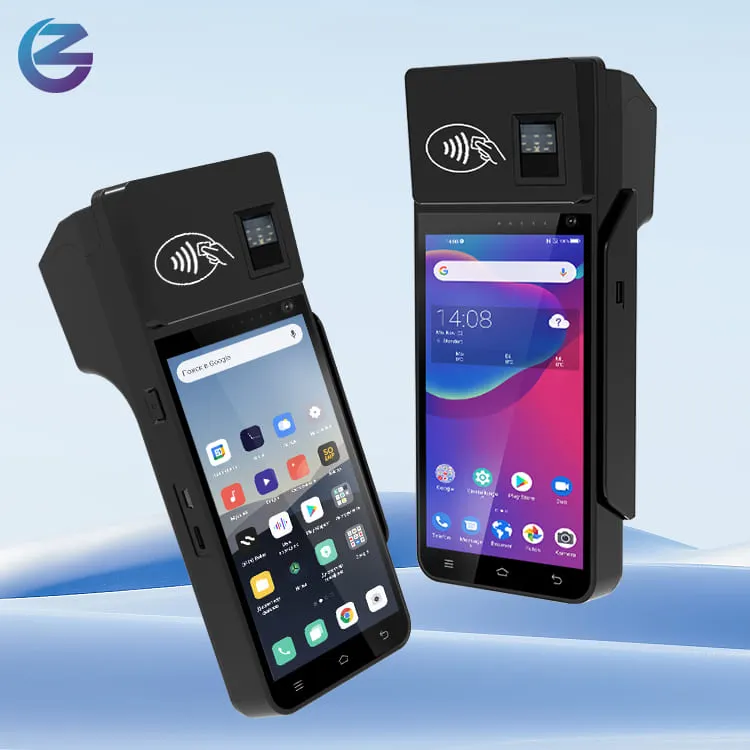

Z90N NFC POS Terminal with Contactless Card Reader and 58mm Printer
The Z90N is an NFC POS terminal designed for contactless payment and receipt-printing projects. It combines a 5-inch 720 × 1280 touchscreen, a built-in 58mm thermal printer, a 5MP rear camera and a 2800mAh / 3600mAh battery in a handheld form. ZOS configurations based on Android 7.1 or Android 12 support application development and deployment according to the selected SKU.
This contactless POS terminal supports ISO/IEC 14443 Type A and B cards and MIFARE 1, together with magnetic-stripe and contact IC card interfaces. Cellular connectivity, hotspot, Bluetooth and GPS support counter and field use. A fingerprint module is optional for projects that combine payment acceptance with identity capture.
The Z90N is also available with an optional RFID reader/writer configuration for supported item-identification, inventory-management and asset-tracking workflows. RFID frequency, tag protocol, reading distance and antenna configuration are selected according to project requirements. RFID identification is separate from NFC payment acceptance and depends on the selected hardware and application.
1. NFC and Contactless Card Acceptance
The integrated contactless reader allows a payment application to work with supported NFC cards under the required kernel, key and host configuration. The Z90N hardware is documented with EMV Contactless Terminal L1, PayWave and PayPass credentials, while its contact IC reader supports EMV Contact Terminal L1/L2.
Reader hardware and certification do not automatically activate every bank card, wallet or payment network. The payment application, acquiring connection, scheme testing and local approvals must be completed for the target market. Learn more about how NFC contactless POS terminals fit cashless payment deployments.
2. 58mm Printing with Optional Black Mark Detection
The built-in 58mm thermal printer enables the Z90N to issue receipts, tickets or transaction records without a separate printer. This combination makes the NFC POS machine suitable for workflows in which staff must accept a card and provide printed proof at the same service point.
Optional black mark detection identifies positioning marks on compatible pre-printed paper, helping the printer locate the start of each label or ticket and reduce printing misalignment. This option supports numbered tickets, fixed-length labels and other media that must align with a predefined printing area.
3. Applications for Ticketing, Retail and Field Collection
- ● Bus and transport ticketing: accept supported contactless cards, issue printed tickets and record transactions through the deployed ticketing application.
- ● Retail and quick-service counters: support card acceptance and receipt printing where a compact handheld device is preferred.
- ● Mobile collection: combine cellular communication, GPS and printed records for field payments and bill collection.
- ● Events and temporary sales points: deploy portable card acceptance and ticket or receipt output at staffed locations.
- ● Payment integrator projects: build market-specific contactless workflows around the selected payment application, kernel and acquiring host.
4. Android Application and Printer Integration
Software providers can evaluate printer control, card-reader access, barcode or QR scanning and device information through the supported software package. The available Android POS SDK resources include a Z90/Z91/Z92/Z100 package. Confirm the model, hardware revision, Android build, firmware, device service and SDK version as one tested compatibility set.
A general peripheral SDK is separate from the certified payment application. During sample validation, test reader behavior, printing, transaction recovery, connectivity loss and host reconciliation with the production software.
5. Choose the Right POS Configuration
Choose the Z90N when the project priority is NFC card acceptance combined with receipt or ticket printing. For buyers comparing certified Android hardware, application integration and broader payment-terminal deployment, review the Z90 Android payment terminal.
For fixed checkout or hospitality projects that need separate operator and customer-facing displays, compare the Z108S dual screen POS terminal. Its larger customer display serves a different workflow from the Z90N handheld contactless-and-printing configuration.
6. OEM Supply and Bulk Deployment
Distributors, payment providers and system integrators can discuss operating-system builds, application installation, branding, packaging, accessories and production configuration. Review available OEM NFC POS terminal customization, then confirm the sample configuration, certificate set, SDK compatibility, order quantity and delivery scope before mass production.
7. Z90N Technical Specifications
| Z90N NFC POS Terminal | |
|---|---|
| Operating System | ZOS based on Android 7.1/12/15 |
| Processor | Qualcomm quad-core ARM Cortex-A7, up to 1.1GHz |
| Memory | 1GB+8GB / 2GB+16GB / 4GB+32GB |
| Display | 5.0-inch capacitive touchscreen, 720 × 1280; supports electronic signature |
| Communication | 2G/3G/4G(Optional), hotspot, Bluetooth and built-in GPS |
| Camera and Scanning | 2MP+5MP or 5MP+5MP; supports 1D/2D barcode and QR-code scanning |
| Card Slots | 1 SIM+3 PSAM / 2 SIM+2 PSAM |
| Thermal Printer | Built-in 58mm thermal printer |
| Magnetic-Stripe Reader | Tracks 1/2/3, bidirectional swiping |
| Contact IC Card | Class A (5.0V), Class B (3.0V) and Class C (1.8V); EMV/PBOC support |
| NFC Card Reader | ISO/IEC 14443 Type A and B, MIFARE 1; EMV/PBOC support with card-reading indicator |
| Security Algorithms | DES, 3DES, RSA, SHA-256 and AES support through the built-in virtual password keyboard |
| Battery | Rechargeable lithium battery, 2800mAh / 3600mAh |
| Power Adapter | Input: 110–240V AC, 50–60Hz; output: 5V DC/2A; Micro USB interface |
| Terminal Interfaces | USB 2.0 high speed, Micro USB (OTG) and Mini USB serial port |
| Optional Charging Dock | RJ45 WAN, RJ45 LAN, USB-C power input, USB-A output and POGO-pin charging; confirm ordered dock version |
| Optional Fingerprint Module | 508 DPI; confirm module model and applicable FBI/STQC documentation |
| Dimensions and Weight | 191.6 × 80.2 × 46mm; approximately 424g |
| Standard Accessories | Power adapter, USB cable, user manual, warranty card and one roll of 58mm thermal paper |
| Optional Accessories | Desktop charger, silicone protective case and fingerprint module |
| Certifications | UnionPay Terminal Safety Certification and POS Terminal Safety Assessment; EMV Contact Terminal L1/L2; EMV Contactless Terminal L1; PCI PTS 5.x; PBOC 3.0 L1/L2; QUICS; FCC; CE; CCC; FBI compliance for the optional fingerprint module. Verify certificate number, hardware/firmware scope and validity for the ordered SKU. |
8. Frequently Asked Questions
Which contactless cards can the Z90N reader detect?
The reader supports ISO/IEC 14443 Type A and B and MIFARE 1. Live payment acceptance depends on the installed application, kernel, keys, processor and acquiring approval.
Can the Z90N print tickets as well as payment receipts?
The built-in 58mm printer can output content generated by the integrated application. Ticket or receipt formats, numbering, reprinting and reconciliation must be implemented and tested in that software.
Does the NFC reader work without internet access?
The reader can detect supported cards locally, but transaction authorization and offline-payment rules depend on the payment application, EMV configuration, acquiring host and risk policy.
What should buyers verify before a bulk order?
Verify the Android build, memory, cellular bands, NFC behavior, printer workflow, optional modules, certificate validity, SDK compatibility and complete acceptance test plan on a production-representative sample.
