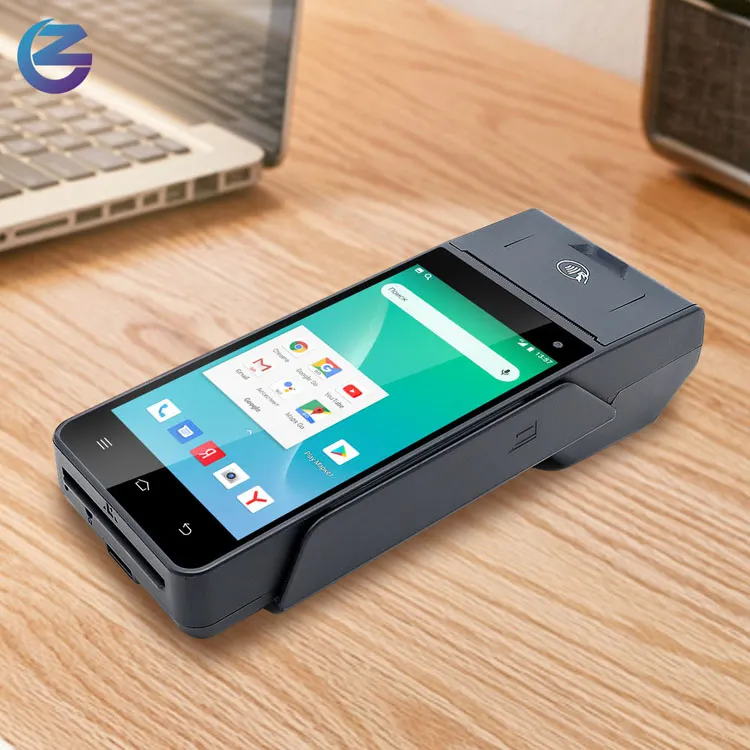

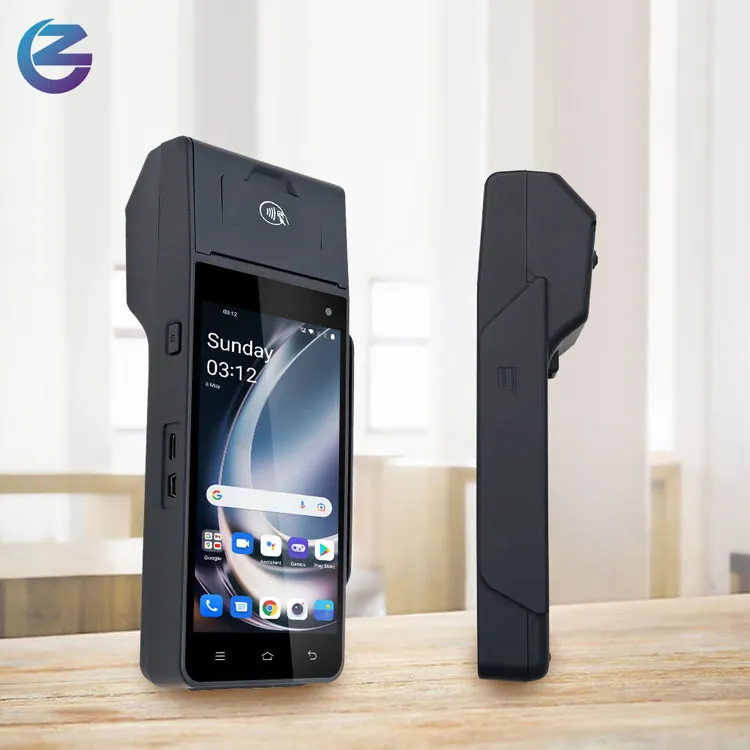

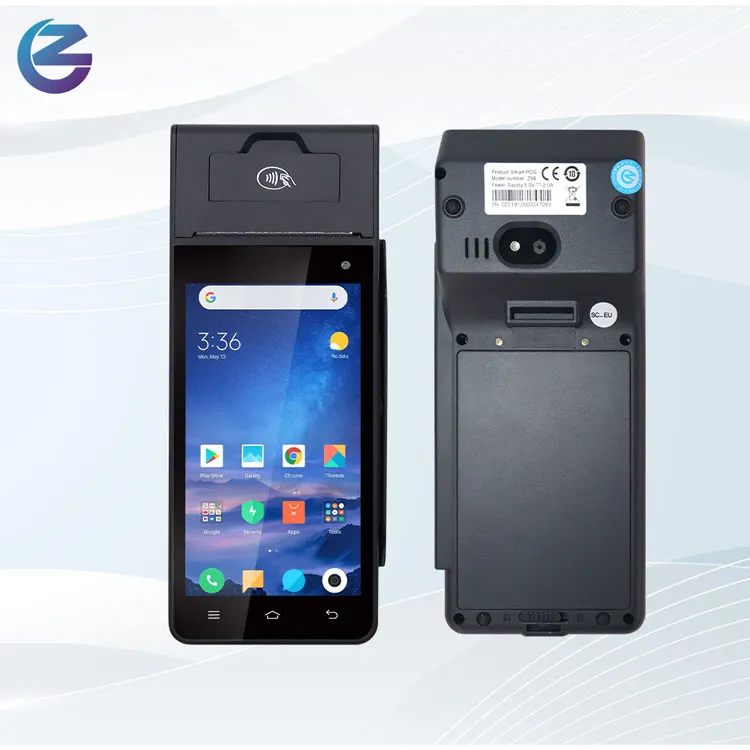

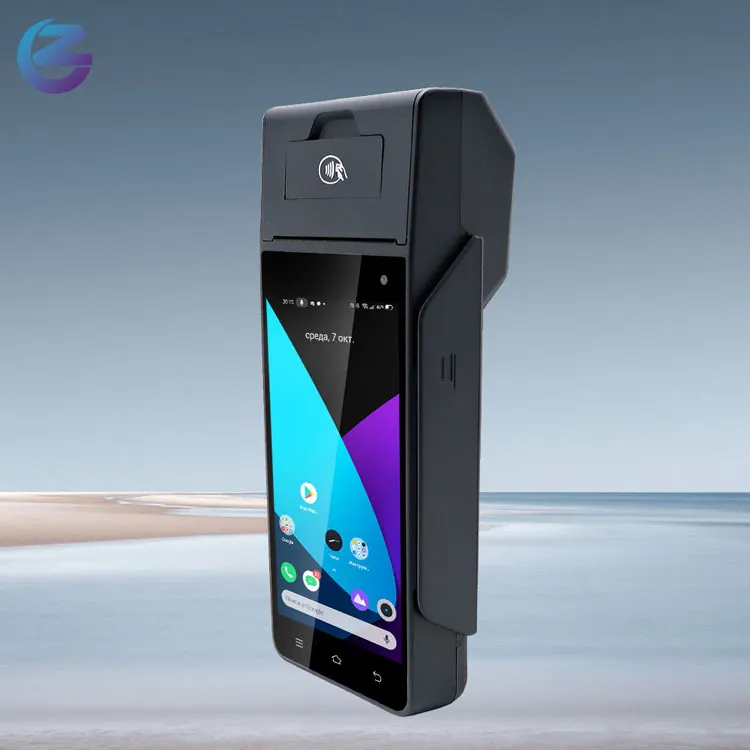

Z90 Android Payment Terminal for Secure App Integration

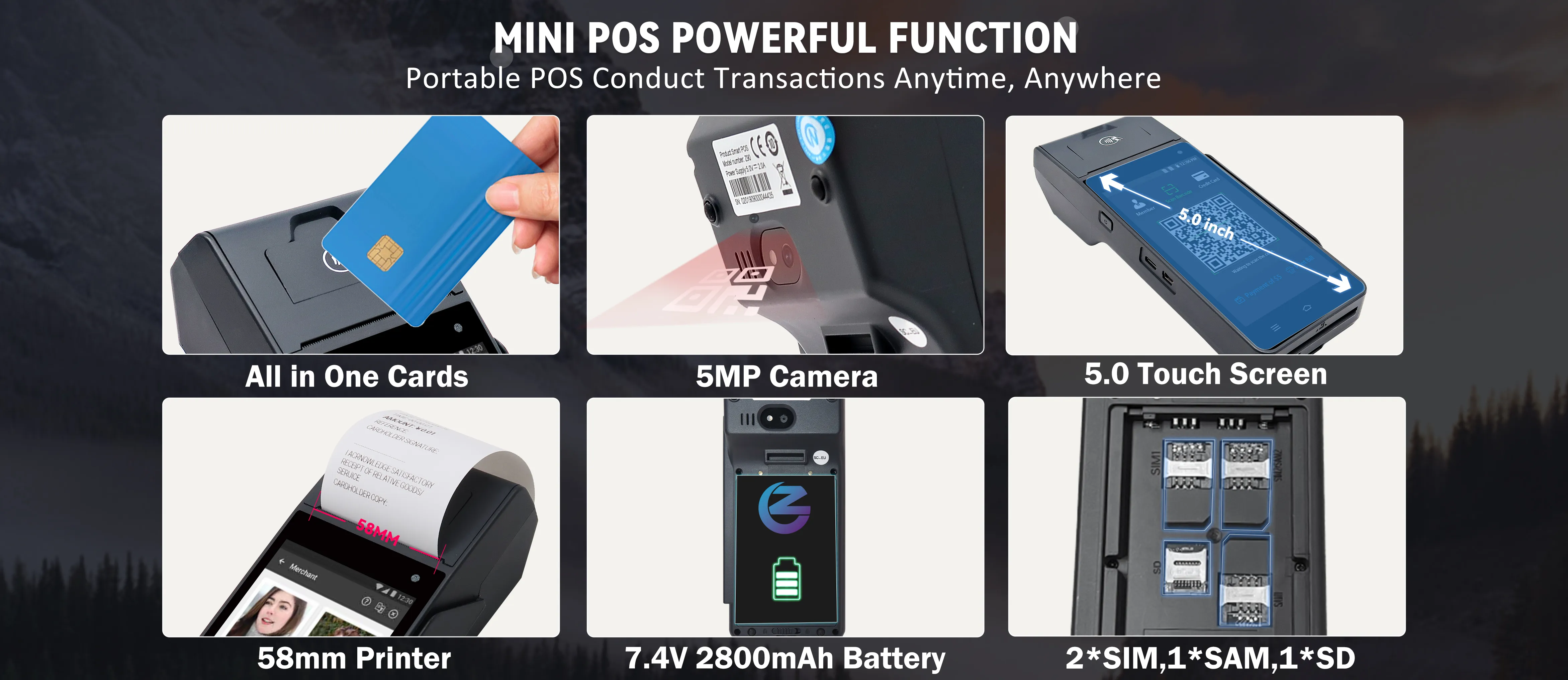

The Z90 is an Android payment terminal designed for payment application integration, merchant deployment and bulk hardware projects. It combines a 5-inch 720 × 1280 touchscreen, a built-in 58mm thermal printer, a 5MP rear camera and a 7.4V/2800mAh battery in a handheld design. ZOS configurations based on Android 7.1 or Android 12 are available according to the selected SKU.
This smart payment terminal supports magnetic-stripe cards, contact IC cards and ISO/IEC 14443 Type A and B contactless cards. 2G/3G/4G(Optional), hotspot, Bluetooth and GPS support mobile payment deployments, while an optional fingerprint module can be specified for projects that require identity capture. Buyers should confirm the operating system, memory, regional communication bands and optional modules on the production sample before bulk ordering.
1. Payment Certifications for Secure Terminal Projects
Z90 configurations are documented with PCI PTS 5.x, EMV Contact Terminal L1 and L2, EMV Contactless Terminal L1, PayWave, PayPass and UnionPay approvals, together with FCC, CE and CCC compliance. These credentials make the Z90 suitable for evaluation as an Android card terminal in regulated payment projects.
Certification claims are configuration-specific. Before approval or mass deployment, procurement teams should match the quoted hardware revision, firmware, payment kernel and certificate expiry to the required market and acquiring environment. Review the applicable PCI and EMV certification requirements before finalizing a project specification.
2. Multi-Card Acceptance and Receipt Printing
The Z90 reads magnetic-stripe cards, EMV contact IC cards and supported contactless cards. Its integrated 58mm thermal printer can produce transaction receipts without a separate peripheral. Hardware support alone does not activate a payment network: acquiring applications, keys, kernels, host connections and market approvals must be supplied and validated as part of the complete payment solution.
3. Optional RFID and Black Mark Detection
The Z90 is available with an optional RFID reader/writer configuration for supported item-identification, inventory-management, asset-tracking and access-control workflows. The installed application can read a compatible RFID tag, retrieve the associated business record and write application-controlled data where supported. RFID frequency, tag protocol, reading distance and antenna configuration are selected according to project requirements.

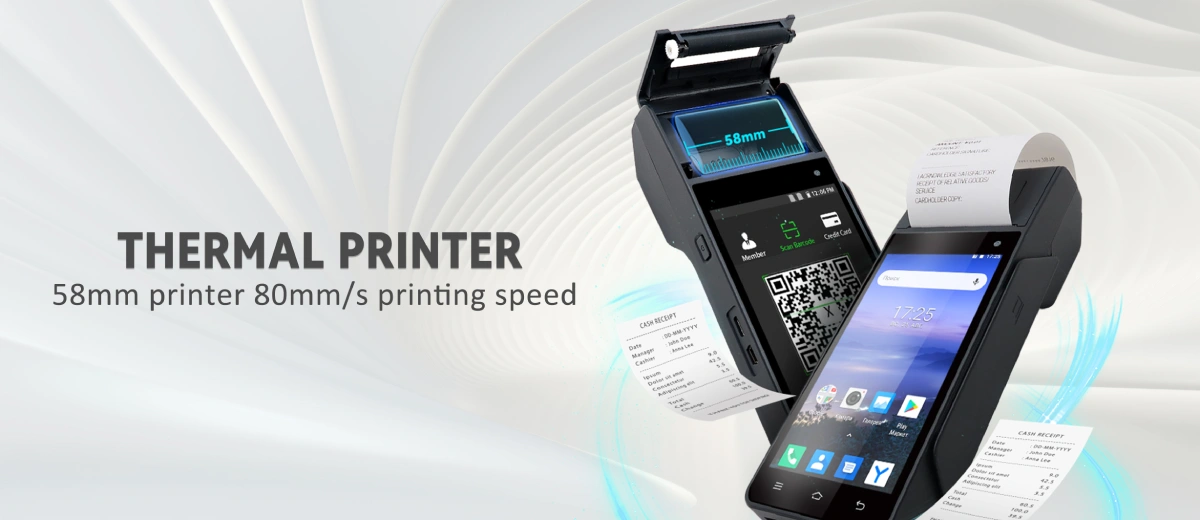

The built-in 58mm thermal printer can also be specified with optional black mark detection. A sensor identifies positioning marks on compatible pre-printed paper, helping the printer locate the start of each label or ticket and reduce printing misalignment. This option supports numbered tickets, fixed-length labels and other media that must align with a predefined printing area.
RFID identification is separate from EMV contactless payment acceptance. The optional RFID reader/writer and black mark detector require the corresponding hardware configuration and application integration to be specified when ordering.
4. Android Application and POS SDK Integration
Payment software providers and system integrators can evaluate printer control, barcode or QR scanning, card-reader access and device information through the supported software package. The available Android POS SDK resources include a Z90/Z91/Z92/Z100 package. Confirm the terminal model, hardware revision, Android build, firmware, device service and SDK version as one tested compatibility set.
A general device SDK controls peripherals such as the printer or scanner; it does not automatically provide certified payment processing. Integration teams should separately validate the payment application, EMV kernels, transaction recovery and host certification. Our Android POS SDK integration guide explains the checks required before production deployment.
5. Payment-Certified Deployment Scenarios
The Z90 is designed for projects that require certified card-acceptance hardware rather than a general Android business terminal. Its payment interfaces, security capabilities and documented approval set make it suitable for evaluation in the following scenarios:
- ● Bank branches and mobile banking counters: card-based customer service, account-related transactions and receipt printing under the bank's approved payment application.
- ● Agent banking and microfinance: field deposits, withdrawals, repayments and assisted financial services using cellular connectivity, card acceptance and optional fingerprint capture.
- ● Merchant acquiring deployments: Android payment terminal rollouts for retailers, service counters and distributed merchant networks.
- ● Government, utility and field collection: authenticated card payments, bill collection and printed transaction records at service points or mobile counters.
- ● Payment integrator and processor projects: development of market-specific payment applications on a terminal platform with EMV contact, contactless and payment-security credentials.
Each deployment still requires the appropriate payment application, key management, processor or host integration, scheme testing, acquiring approval and local regulatory acceptance. Buyers should provide the target country, transaction types and processor requirements when requesting a project configuration.
6. B2B Supply for Payment Integrators and Distributors
The Z90 can be evaluated by payment integrators, distributors and hardware brands seeking an Android payment terminal supplier for sample testing and volume deployment. Project discussions can cover operating-system builds, application installation, branding, packaging, accessories and production configuration. For markets using EFTPOS terminology, the same hardware can be assessed as an Android EFTPOS terminal, subject to local acquiring and certification requirements.
Review available OEM Android payment terminal customization options, then confirm the sample configuration, certificate set, SDK compatibility, order quantity and delivery scope before mass production.
7. Z90 Technical Specifications

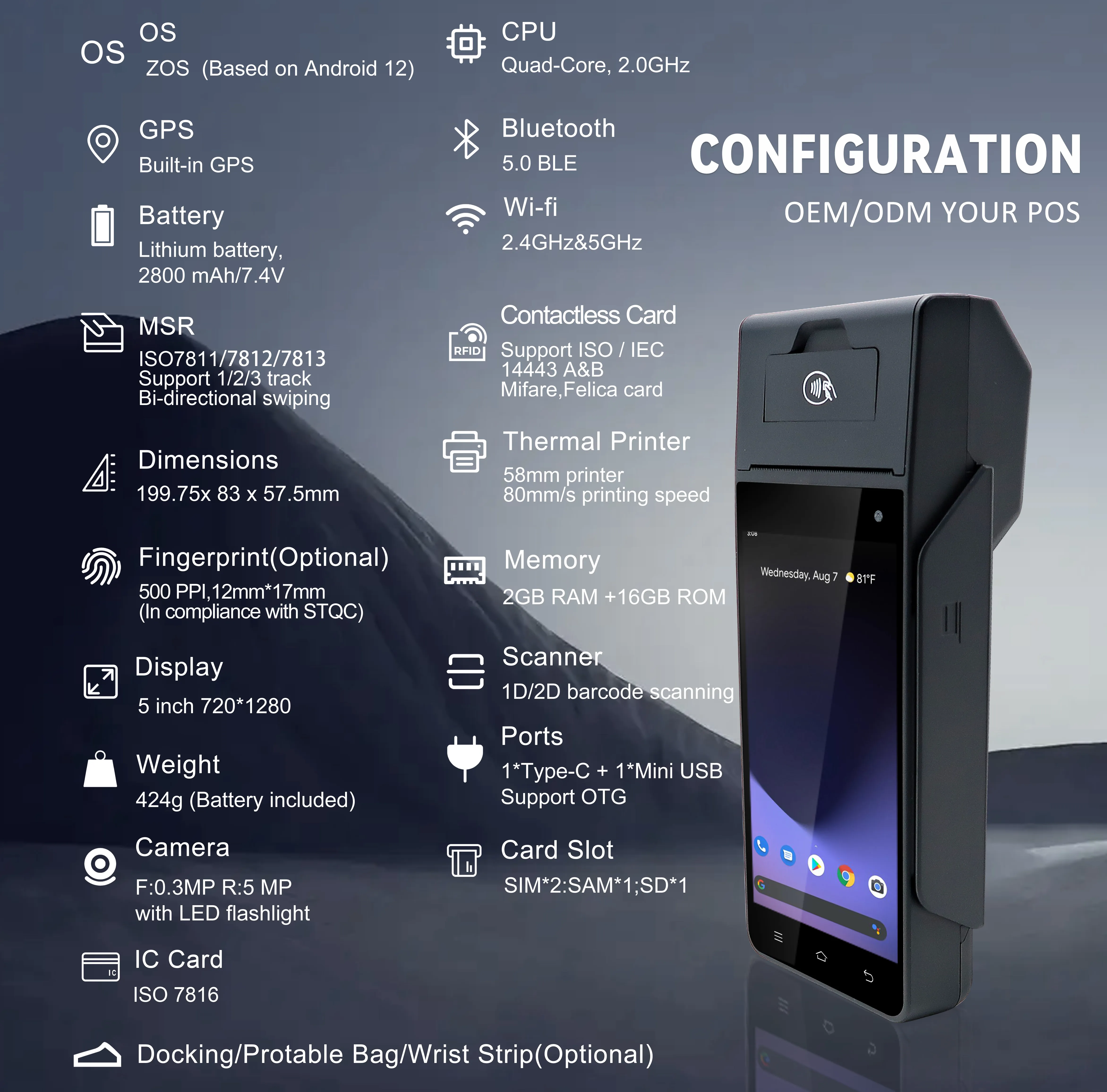

| Z90 Android Payment Terminal | |
|---|---|
| Operating System | ZOS based on Android 7.1 or Android 12; confirm selected SKU |
| Processor | Qualcomm quad-core ARM Cortex-A7, up to 1.1GHz |
| Memory | 1GB RAM + 8GB ROM or 2GB RAM + 16GB ROM |
| Display | 5.0-inch capacitive touchscreen, 720 × 1280; supports electronic signature |
| Communication | 2G/3G/4G(Optional), hotspot, Bluetooth and built-in GPS; confirm regional cellular bands |

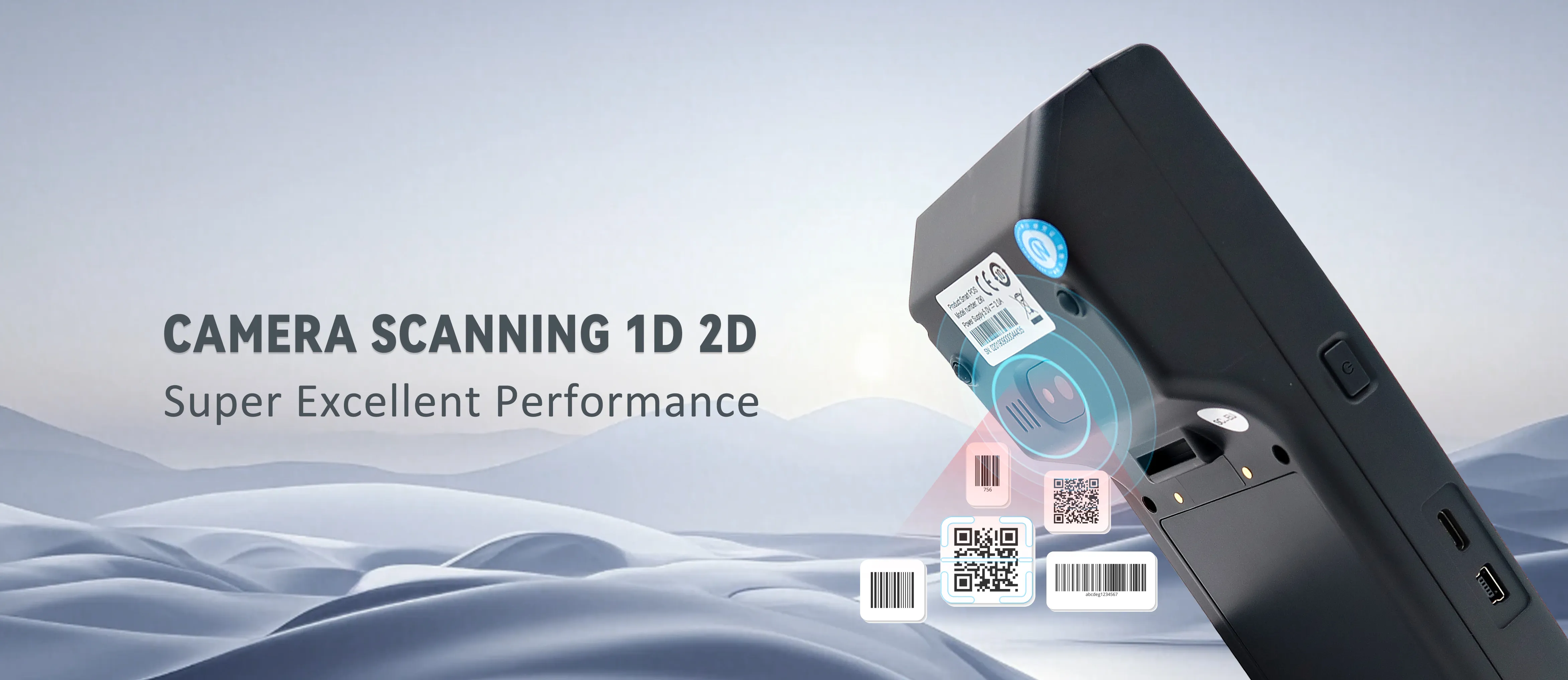

| Camera and Scanning | 5MP rear camera and 0.3MP front camera; supports 1D/2D barcode and QR-code scanning |
| Card Slots | 2 × SIM, 1 × SAM and 1 × microSD |

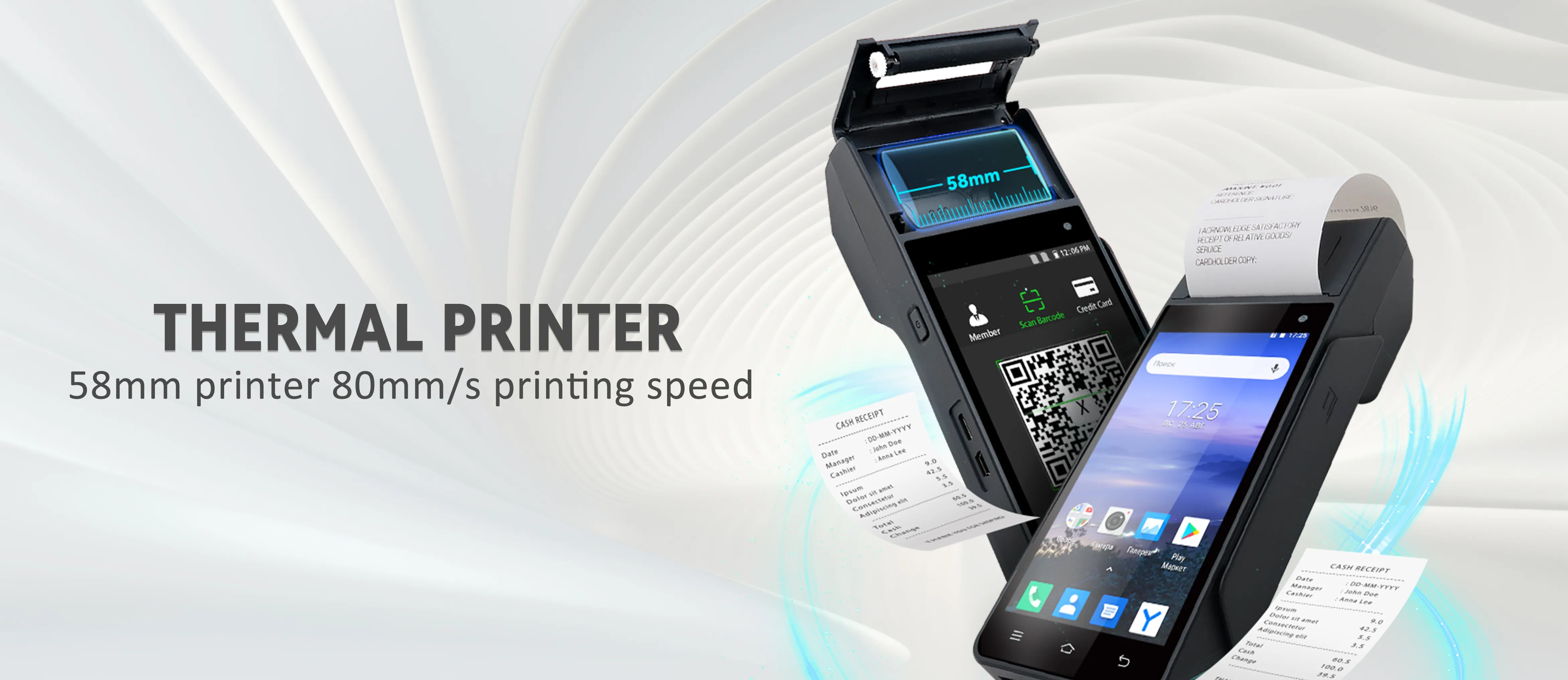

| Thermal Printer | Built-in 58mm thermal printer |
| Magnetic-Stripe Reader | Tracks 1/2/3, bidirectional swiping |
| Contact IC Card | Class A (5.0V), Class B (3.0V) and Class C (1.8V); EMV/PBOC support |
| Contactless Card Reader | ISO/IEC 14443 Type A and B, MIFARE 1; EMV/PBOC support with card-reading indicator |
| Security Algorithms | DES, 3DES, RSA, SHA-256 and AES support through the built-in virtual password keyboard |
| Battery | Rechargeable lithium battery, 7.4V/2800mAh |
| Power Adapter | Input: 110–240V AC, 50–60Hz; output: 5V DC/2A; Micro USB interface |
| Terminal Interfaces | USB 2.0 high speed, Micro USB (OTG) and Mini USB serial port |
| Optional Charging Dock | RJ45 WAN, RJ45 LAN, USB-C power input, USB-A output and POGO-pin charging are documented for the dock; confirm ordered dock version |
| Optional Fingerprint Module | 508 DPI; confirm module model and applicable FBI/STQC documentation |

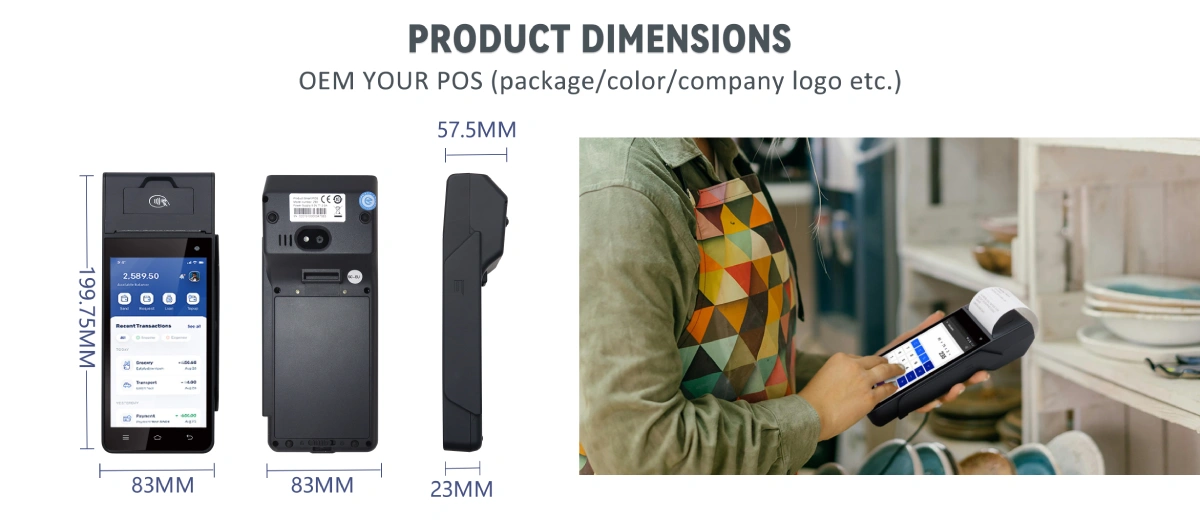

| Dimensions and Weight | 191.6 × 80.2 × 46mm; approximately 424g |

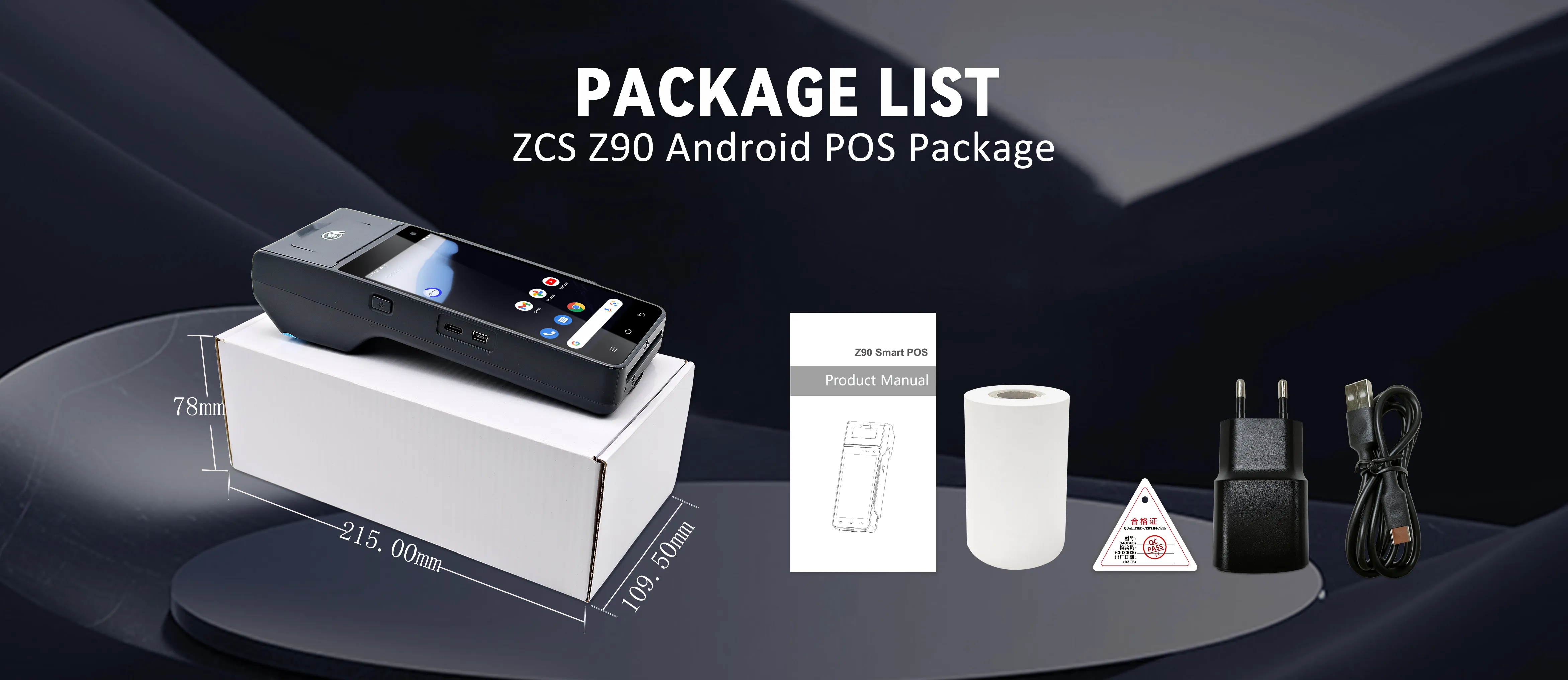

| Standard Accessories | Power adapter, USB cable, user manual, warranty card and one roll of 58mm thermal paper |
| Optional Accessories | Desktop charger, silicone protective case and fingerprint module |
| Certifications | UnionPay Terminal Safety Certification and POS Terminal Safety Assessment; EMV Contact Terminal L1/L2; EMV Contactless Terminal L1; PCI PTS 5.x; PBOC 3.0 L1/L2; QUICS; FCC; CE; CCC; FBI compliance for the optional fingerprint module. Verify certificate number, hardware/firmware scope and validity for the ordered SKU. |
7. Frequently Asked Questions
Which Android version does the Z90 use?
Z90 documentation lists ZOS builds based on Android 7.1 and Android 12. The operating system, firmware and SDK package must be confirmed for the quoted SKU.
Does the Z90 support chip, magnetic-stripe and contactless cards?
The hardware supports magnetic-stripe, contact IC and ISO/IEC 14443 Type A and B contactless card interfaces. Payment acceptance still depends on the certified application, kernels, keys, acquiring host and local approval.
Can our company install its own payment or merchant application?
Application installation and peripheral integration can be evaluated through the supported SDK and project services. Confirm signing, permissions, firmware, payment-kernel ownership and remote-management requirements during sample testing.
What should a buyer confirm before placing a bulk order?
Confirm the Android build, memory, cellular bands, card-slot layout, optional modules, dock, accessories, certificate validity, SDK compatibility and acceptance test plan on a production-representative sample.
