Z90 ZOS(Base on android 12.0) POS is equipped with EMV, VISA, Mastercard, UnionPay, PCI and CE certification. FBI & STQC certified fingerprint module is optional.
To financial payment terminal as the core of intelligent products, to adapt to a variety of payment scenarios, compatible with a variety of payment methods, comes with a sound application software, powerful platform management software and operational solutions.

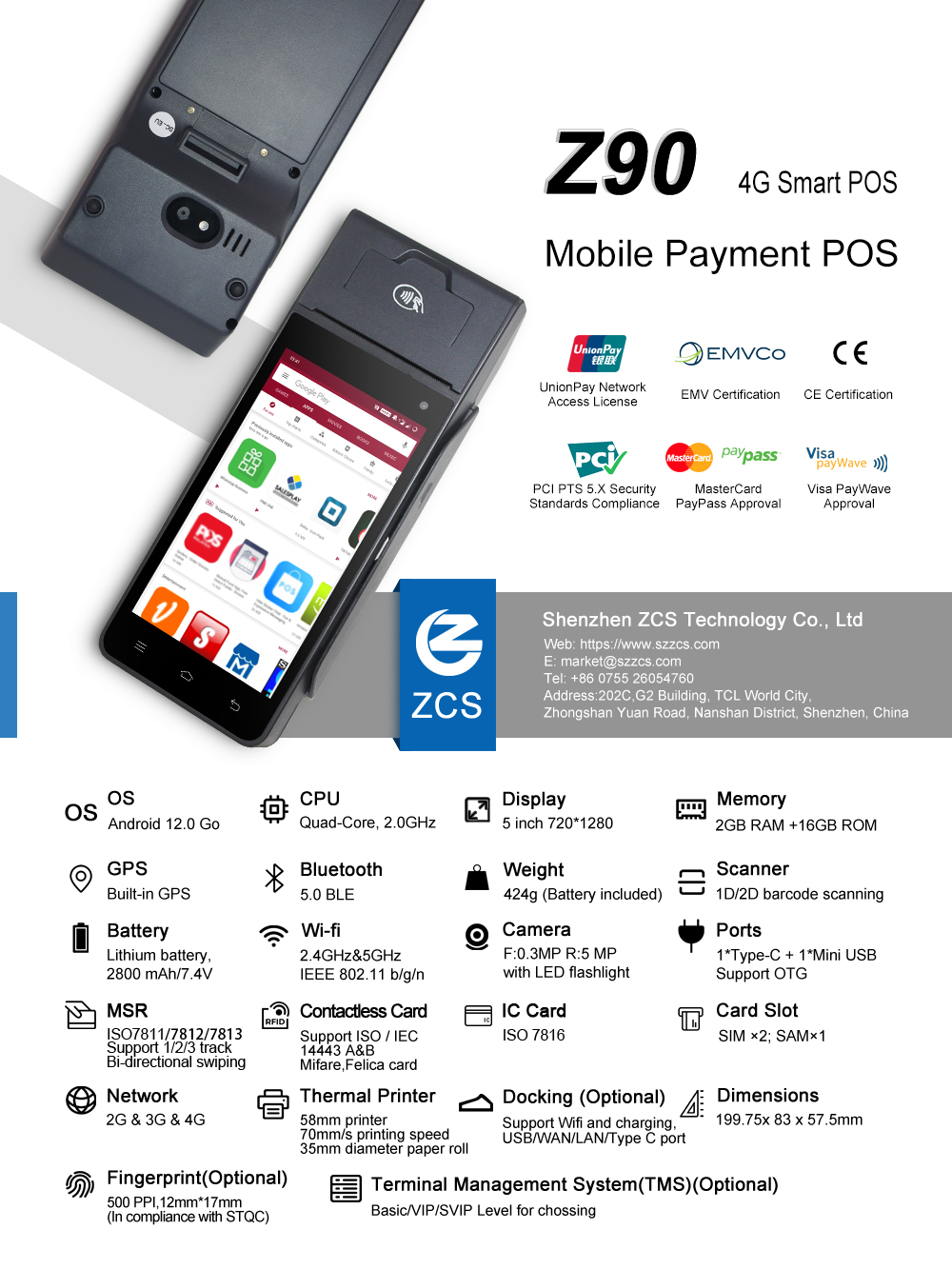

Z90 Smart Handheld Android POS
1.Introduction

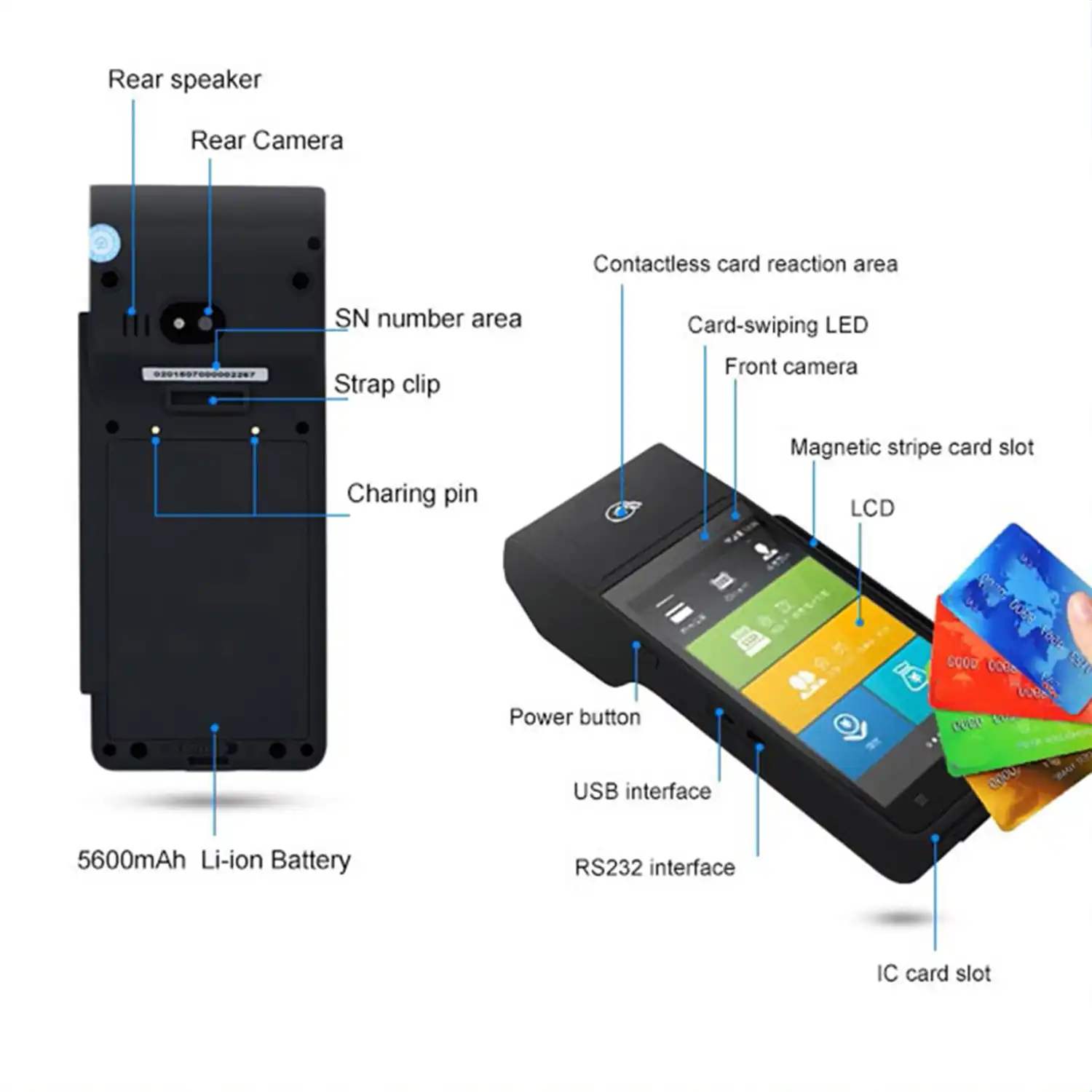

Z90 4G Smart payment POS, ZOS(Base on android 7.1/12.0) operating system, 5.0 inch screen touch, long standby battery capacity is 5600 mAh, fast thermal printer, fingerprint collection module(optional), 5 MP camera, 2G/3G/4G/wifi/GPS/bluetooth communication, magnetic stripe, induction IC card, contact IC card.
This fine workmanship and top quality machine is the best choice in the market.
2.Features
Android operating system: adopt the open android system, can let the user a simple and efficient development of the upper application.
Serviceable range : apply chain supermarkets, restaurants, convenience stores, clothing store, premises, bakery, cashier, pay, enters sells saves the business management function.
| Z90 Android Payment POS | |||
| Operating system | ZOS(Base on Android 7.1/12.0) | Memory | 1GB/2GB RAM+8GB/16GB ROM |
| CPU | Quad-Core Processor | LCD Screen | 5.0 inch |
| Display Resolution | 720*1280 | Fingerprint collection | Spatial resolution :508 DPI |
| Communication | 4G/3G/2G/Hot spot/Bluetooth/WiFi | GPS | Built-in GPS |
| USB | Type C USB(OTG), Mini USB serial port | Camera | 5 MP rear camera with LED flashlight |
| Card Slot | SIM ×1;SAM×2;SD×1 | Scanning | Support 1D / 2D scanning |
| Touch screen | Capacitive touch screen, support the electronic signature | Printer | 58mm print paper,Built-in high speed thermal printer |
| Magnetic card reader | Support 1/2/3 track,Bi-directional swiping | Battery | Lithium battery, 7.4V/2800mAh |
| IC card read-write | Support type A(5.0V),type B(3.0V) or type C(1.8V) | NFC card | Support ISO/IEC14443 Type A&B, Mifare1 |
| (In compliance with EMV and PBOC) | (In compliance with EMV and PBOC,with card reading indicator) | ||
| Multimedia | Support for recording, voice broadcast | Password keyboard | Built-in password keyboard (virtual) |
| Support video play back/recording | Support DES, 3 DES, RSA, SHA - 256 and AES;algorithm | ||
| power adapter | Input:110V to 240V AC/50 ~ 60Hz | Temperature | Storage temperature: -10℃-60℃ |
| Output: 5V DC / 2 A,General Type C USB interface | Working Temperature: 0℃-50℃ | ||
| Dimension and weight | 191.6mm×80.2mm×46mm,424g | WiFi | 2.4GHz |

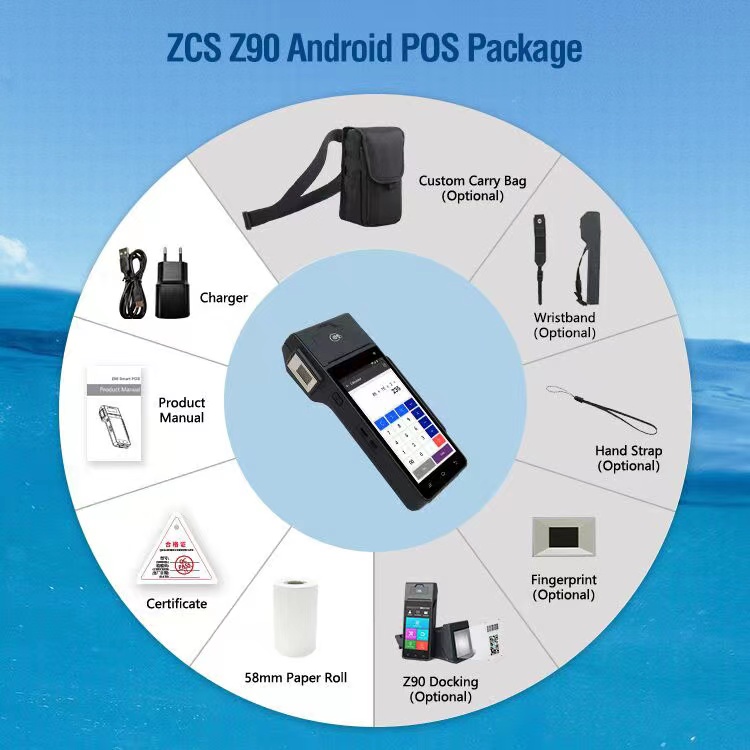

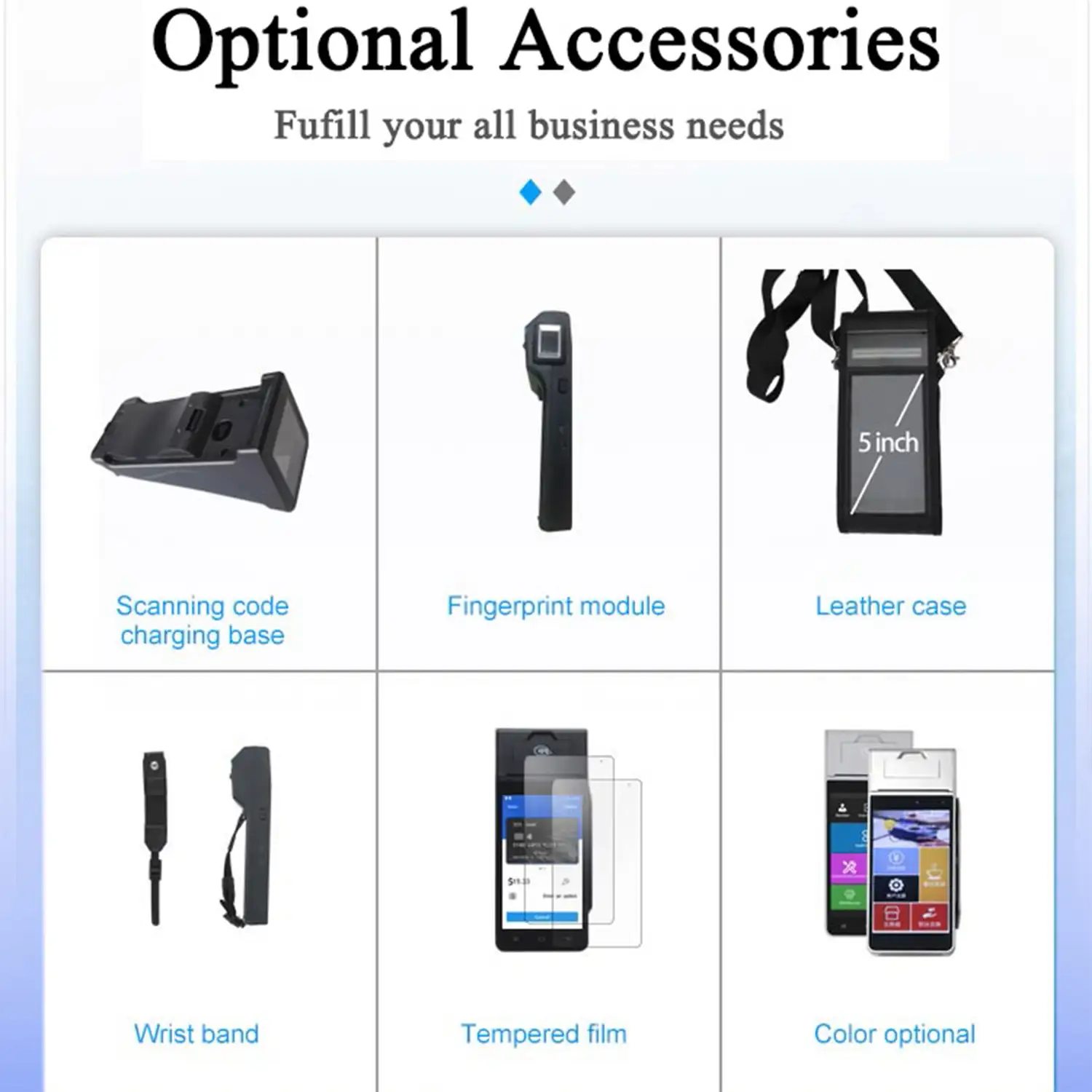

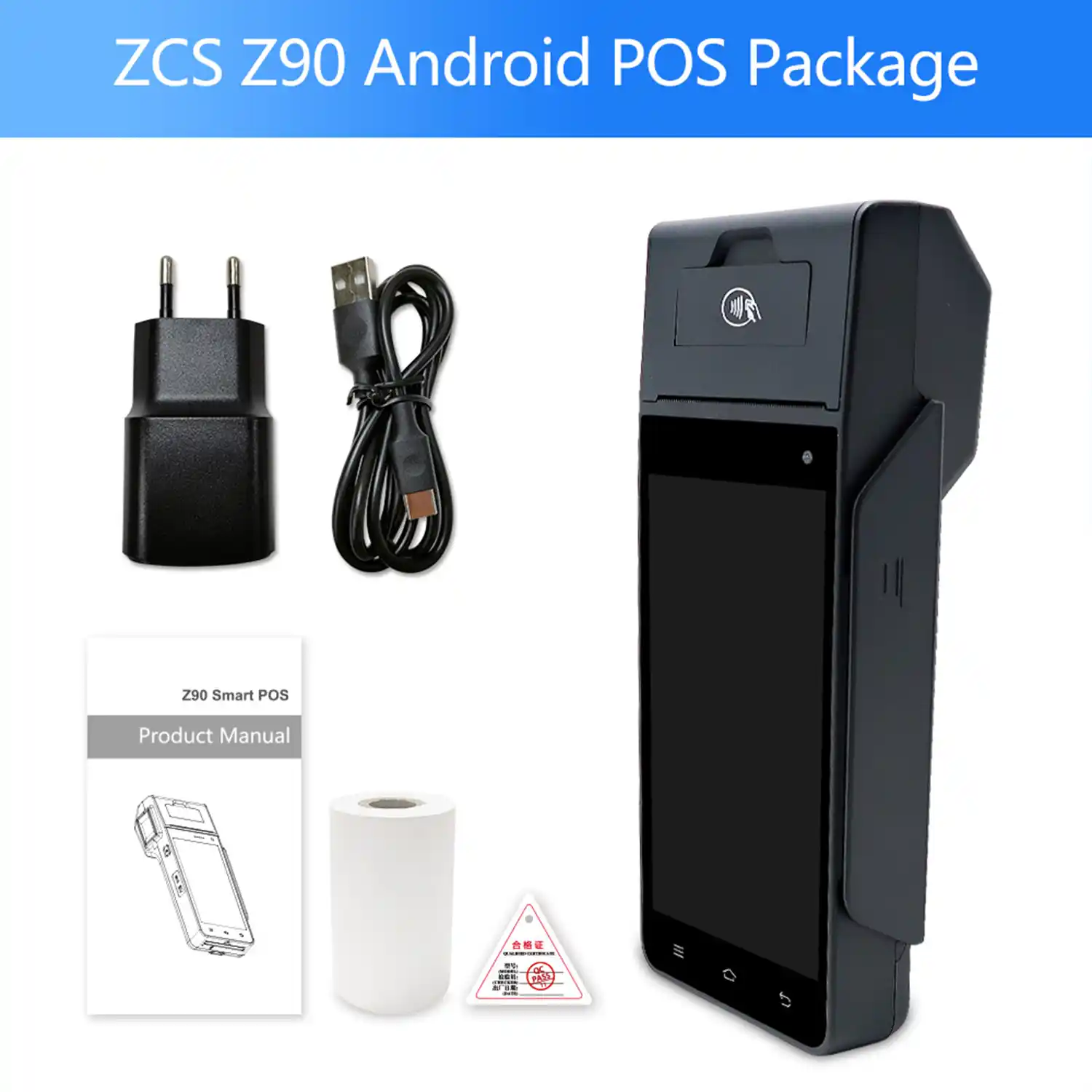

| Standard Accessories | 1pc power adaptor, | Optional Accessories | Face Recognition |
| 1pc Type C USB cable, | POS Docking | ||
| 1pc User Manual, | Carry Bag | ||
| 1pc Warranty card, | Fingerprinter/Infrared Scanning Code | ||
| 1 roll 58mm thermal paper, | Wristband | ||
| 1pc leather case(optional) | Hand Strap | ||
| Certificate | PCI PTS 5.x | Port | 1*RJ45 WAN Port |
| PayWave &PayPass | 1*RJ45 LAN Port | ||
| EMV Contact Terminal L1&L2 | 1*Type C，high speed USB2.0，5V 2A input | ||
| EMV Contactless Terminal L1 | 1*USB-A，5V 200mA output | ||
| UnionPay,FCC,CE,CCC | 2*POGO PIN，for Z90 charging | ||
| Scanner | Support barcode/QR code scanner | Module | FBI&STQC(Fingerprint module) |
