产品名称:

ZCS103

上市日期: 2019-06-18

*Overall the scheme of low power consumption has strong life;

*High capacity rechargeable lithium ion batteries, increased the working time for the printer;

*The high performance printer machine, greatly enhance the printing effect and service life;

*High speed processor, the machine response more quickly;




Product category: Bluetooth Printer
  • Features
  • Specification
  • Accessories
  • Download
  • Video
  • Links

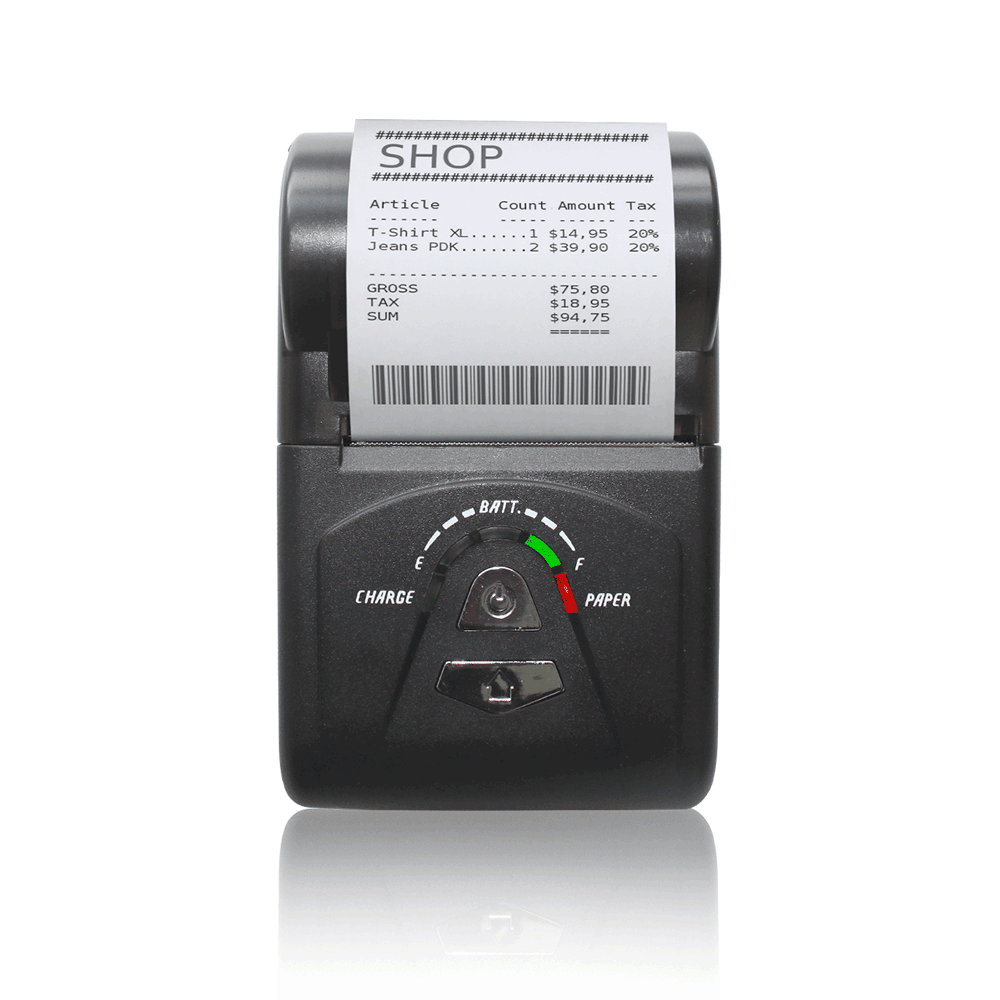

Pocket-size Bluetooth Printer

1. Introduction

ZCS103, portable Bluetooth printer that can be used with multiple mobile terminal products onetime. The product is small in size, light in weight, reliable in performance, simple in operation and easy to use, and is suitable for outdoor operating environment.

Widely used in retail, parking bills, logistics, mobile payment terminal and other occasions.

2. Feature

*Overall the scheme of low power consumption has strong life;

*High capacity rechargeable lithium ion batteries, increased the working time for the printer;

*The high performance printer machine, greatly enhance the printing effect and service life;

*High speed processor, the machine response more quickly;

*Low power consumption of the bluetooth module,Support the android system;

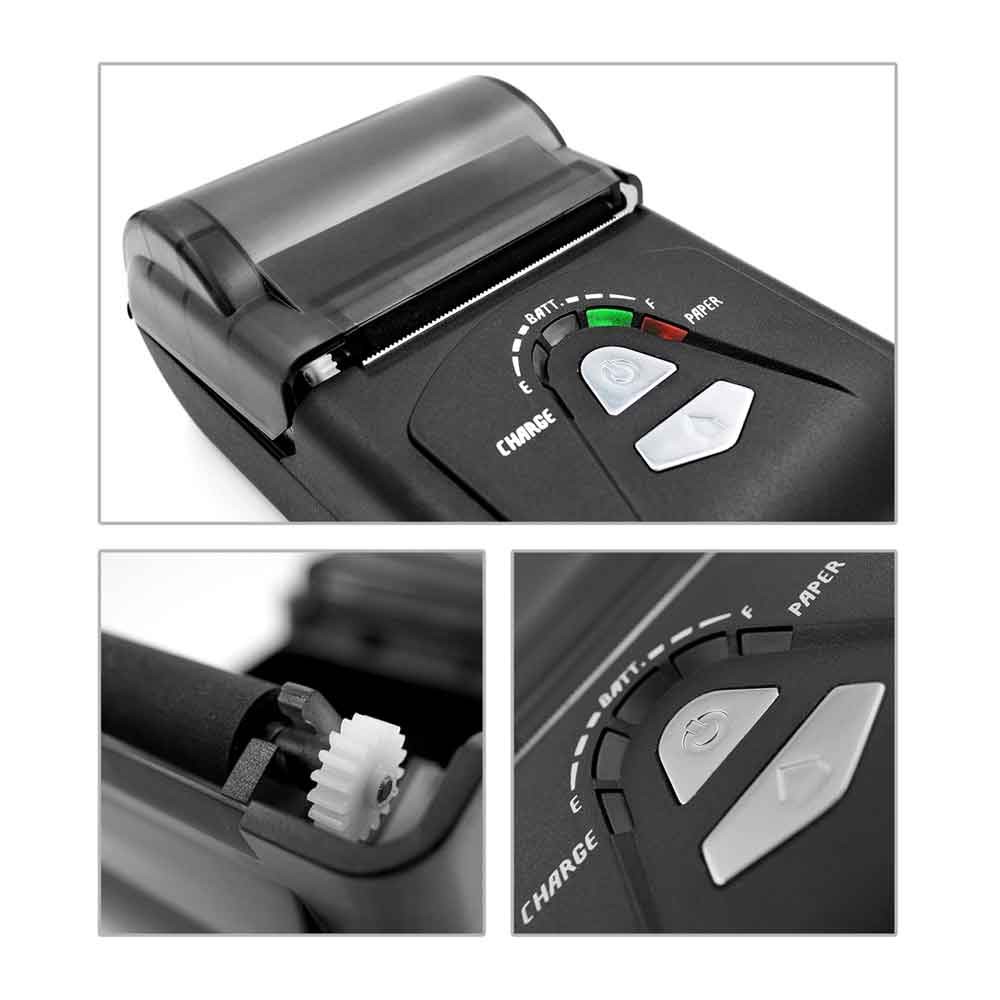

*Simple and practical, carton design can be convenient and quick to replace printing paper;

*Compatible with ESC/terminal command set;

*Power supply, power, lack of paper, charging indication function, provides the user with more intuitive state information;

*Easy to operate、Small and beautiful;


Technical Specification


Print Way

Line thermal printer

Print width

48mm

Paper width

57.5±0.5mm

Paper roll outer diameter

40mmZCS10335mm(ZCS05)

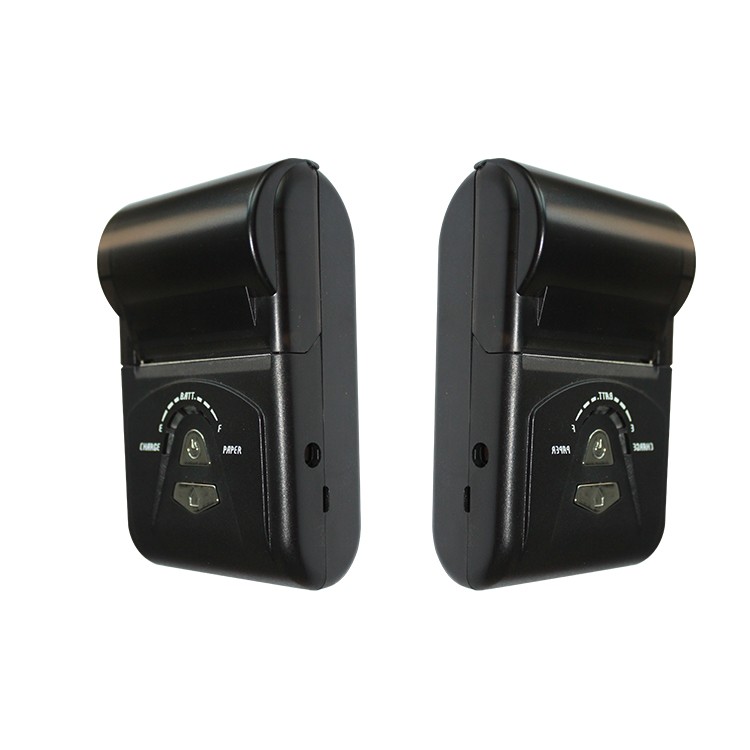

ZCS103 appearance and size

Device size:123×75.4×45 mm

Device weight:204g (including the battery)

Package Size:207×155×86 mm

Package weight:430g

Character encodings

Chinese,Thai ,Georgian,CP857,CP858,Windows-1252,Windows-1256(MS-Windows character sets)

Print speed

80mm/s

Life cycle time

50km(printing density under 25%)/100 million pulses

Text and graphic support

Figure, symbol, graph, curve, icon, multi-languages

Print resolution

384 dots/line,200DPI

Communicate Interface

USB and Bluetooth v4.2 BR/EDR and BLE standard

Power

Rechargeable Li-ion Battery,7.4V,2x 1400mAh,5V DC/1A

Charging time

3 hours;Low battery,charging,fully charged indicators

Paper Supply Method

Drop-in paper load

Paper cut method

Manual tearing

Instruction set

Compatible with ESC/POS command set

Standby current

30mA

Standby time

48h

Print average current

1.5A
