1. Introduction

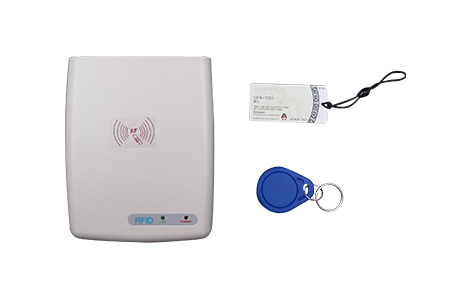

ZCS-IC03 is a desktop triple non-contact reader and contact IC card reader. It consist of the host, antenna and interface USB HID . It use the USB to connect with a PC and related equipment, non-contact random supports MIFARE ONE card, DESFIRE cards, CPU cards, and the contact CPU card supports random, SLE4442, SLE4428 and other cards. The readers can achieve security and meet the needs of most security. It is the development of non-contact IC card and contact IC card related products and systems integration necessary front-end processing equipment. The rich, perfect interface functions for time and attendance, access control, toll roads and bridges, gas stations, car parks, public transportation, medical and a variety of charges, stored value, smart card management application system.
2. Feature
l The genuine USB HID MIFARE1 card reader,plug and play
l Built-time continuous change MIFARE1 all 16 district or any area code functions to perform a password change takes less than 16 District 200 milliseconds
l When a call to any operation, there is return information, a variety of unexpected glance, such as continuous change MIFARE1 16 area code, if suddenly removed the card, it will return the number has been changed and unmodified several areas, such as area information.
l Support for non-contact MIFARE ONE card, CPU card, DESFIRE card, which is the country's most widely used, such as class IC card Shenzhen Tong and the like, as well as refueling card. Sensing distance of 0-5cm
l Stable performance, high speed, low power, no external power supply, stable computer USB power supply, the failure rate is lower
l Light, beautiful, trendy.
l The circuit board has a programmable control buzzer,can be set sound.
l Have a power indicator light and operating status of the USB communication signals
l Any call operation, return to information, all kinds of accidents are clear at a glance
l Provide a full range of dynamic library functions, provide a comprehensive description of the development, points, example, and source code.(includes c#2003,c++builder,Adelphi,Powerbuilder,VB.net2003,VB6.0,java)
