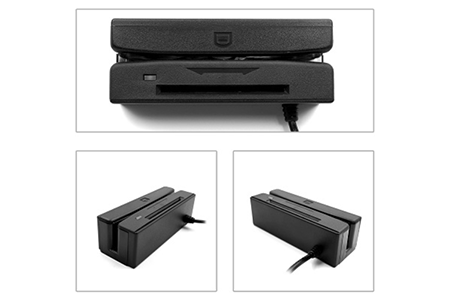

2 in 1 Magnetic Stripe Reader + Contact IC Chip Card Reader Writer

1. Introduction

ZCS100-IC is programmable magnetic card, IC card reader combo, widely used in industrial, commercial, telecommunications, taxation, banking, insurance, medical and a variety of fees, stored value, query management system. The user can according to actual needs, select the data format and intelligent interface by programming or configuration.

2. Feature

thin, light and beautiful, practical
      POST, no additional power supply
      can read a variety of memory cards and supports T = 0, T = 1 protocol CPU card
      via USB interface to communicate with the computer, support android platform
       simple operation, easy connection, plug and play
       Certification: CE, ROHS, FCC
       supports a variety of systems: Windows XP, Windows visa, Windows7, Linux, etc.
        a variety of SDK sample program


Technical Specification

Model

ZCS100-IC

Interface

Micro USB(5V)

Communications

USB,mini  USBSerial

Operating system

Win10,Win8,Win7,Win XP(SDK avaliable), Linux

Temperature

-20°∼ 60 °Cstorage

-20°∼ 60 °Coperation

Humidity

90% non- condensing(for operation)

Maximum power consumption

100 mW

Magnetic interference resistance

19 Oersted

Vibration resistance

Amplitude 0.35mm,Frequency 10-55Hz,Three axis directions sweep vibration

Insulation Resistance

Hot and humid circumstances(40°,95%)Insulation resistance should not be less than 5 mΩ

Dimensions

100mm(L) ×34mm(W) × 30mm(H)

Color

Black

Error rate

<0.5%

Weight

85g

IC card

Operating Life

> 100,000times

Card thickness

About 0.75mm

Insert IC card Current

20mA

Operate IC card

50mA

Working current

25mA

Card type

AT24C01A/24C02/24C04/24C08/24C16/AT24C64SLE4432/4442SLE4418/4428

ISSI 24C01A/16,ISO7816-(1-4) (T=1, T=0)

Magnetic Stripe

Card type

ISO 7811,AMMVA,CADMV and other format

Swipe speed

3 ~ 60 in/s

Operating Life

>500,000

Track position

Track1/2/3

Card thickness

0.76~1.2mm

Working current

7mA
