产品名称:

MSR100

上市日期: 2019-06-18

This product USES the F2F decoding magnetic card, magnetic card decode functions and data support for two-way charge, according to different user requirements, can be read magnetic card 1, 2, 3 track information, fully meet ANSL/ISO technical standards, simulation with a USB HID, keyboard, USB OTG or RS_232 serial port (customizable) output. Support the JPOS & OPOS interface.

Product category: Card Reader
  • Features
  • Specification
  • Accessories
  • Download
  • Video
  • Links

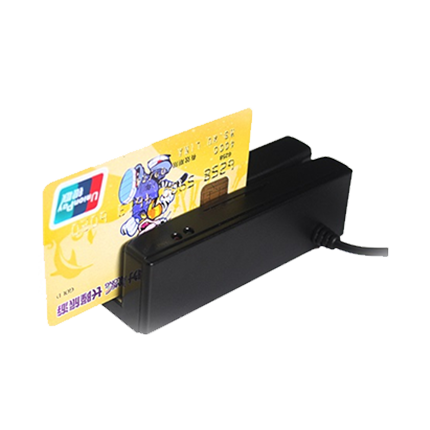

3 Track Programmable Magnetic Stripe card reader

1. Introduction

MSR100 is a programmable magnetic card reader,specialized for magnetic card read and transmit information. This is product use F2F decoding magnetic, set card decoding and data transmission function in one, support double direction swipe card,according to different user requirements,can be rea magnetic card 1,2,3 track information, fully meet ANSL/ISO technical standards ,simulation with USB HID、keyboard、USB OTG or RS_232 serial port(customizable) outpu.Support JPOS & OPOS interface.

2. Feature

1. Compatible with Windows, Android System.

2. All 3 tracks can set to 75/210 BPI;

3. USB or Serial interface or customized.

4. Long service life (500,000 card passes).

5. Suitable for all ISO7811/7812, ANSI,

AAMVA and CA DMV magnetic cards.


Technical Specification

Mode

MSR100U(USB)、MSR100DSerial port

Reference standards

ISO 7811, AMMVA,CADMV and other format

Swipe speed

3 ~ 60 inches per second

Interface

USB2.0, plug and playcan customize USB OTG or RS232

Magnetic head

MSR100U(single head)MSR100D(double head

Read track

All 123track optional

Work temperature

-20℃~60℃

Storage temperature

-20℃~60℃

Relative humidity

90% (non-condensing)

Operating life

Approx. 500,000 passes

Device size

100mm(L) X 34mm(W) X 30mm(H)

Device weight

85g(MSR100U)90g(MSR100D)

Package size

121mm(L) X 81mm(W) X 41mm(H)

Package weight

130g

Color

Black

Read error rate

< 0.5%

Warranty

One years
