产品名称:

ZCS-IC02

上市日期: 2019-06-27

ZCS-IC02 is a contactless smart card reader/writer base on the 13.56M Hz contactless (RFID) Technology. It supports Mifare and ISO 1443A standard.It is a plugand- play USB device allowing interoperability with different devices and applications. The proximity operating distance is up to 10 cm, depending on the type of contactless tag in use. This advanced Reader/Writer is widely used in applications including Access Control, Parking Systems, Prepaid Parking, Ticketing, Time and Attendance, Admission Control and POS.

产品类别: Card Reader
  • Features
  • Specification

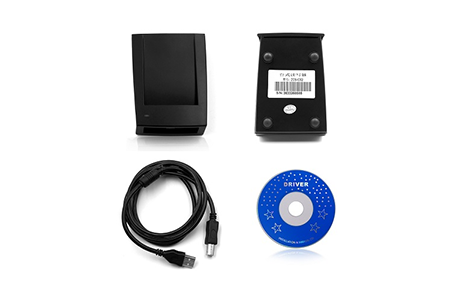

  • Accessories
  • Download
  • Video
  • Links

1. Introduction

ZCS-IC is a contactless smart card reader/writer base on the 13.56M Hz contactless (RFID) Technology. It supports Mifare and ISO 1443A standard.It is a plugand- play USB device allowing interoperability with different devices and applications. The proximity operating distance is up to 10 cm, depending on the type of contactless tag in use. This advanced Reader/Writer is widely used in applications including Access Control, Parking Systems, Prepaid Parking, Ticketing, Time and Attendance, Admission Control and POS


2. Feature

● The genuine USB HID MIFARE1 card reader,plug and play


● Stable performance, fast speed, low consumption, without external power supply,usestable computer USB power ,a lower failure rate.


● Support MIFARE ONE card,sensing distance from 0-50mm.


● Light, beautiful, trendy.


● The circuit board has a programmable control buzzer,can be set sound.


● Have a power indicator light and operating status of the USB communication signals


● Built-in one continuous change all 16 district or any district password,perform a change of 16 area password takes less than 200 milliseconds.


● Any call operation, return to information, all kinds of accidents are clear at a glance


● Provide a full range of dynamic library functions, provide a comprehensive description of the development, points, example, and source code.(includes c#2003,c++builder,Adelphi,Powerbuilder,VB.net2003,VB6.0,java)


Technical Specification

Model

ZCS-01ZCS-02

Interface

USB Full SpeedUSB-OTG(Android 3.1 above)

Supply Voltage

5V DC

Supply Current

200mA(operating);50mA(standby);100mA(normal)

Operating Frequency

13.56 MHz

Smart Card Interface

ISO14443-A, Mifare

Sensing Distance

0~100mm

Operating Temperature

0-50°C

Weight

170g(ZCS-IC01)130g(ZCS-IC02)

Size

ZCS-IC01

 12cm (L) X 10cm (W) X 3cm (H)

ZCS-IC02

 11cm(L) X 8cm(W) X 3cm(H)

Color

White(ZCS-IC01)Black(ZCS-IC02)

Certifications

CE,FCC,ROHS

Operating system

Win10,Win8,Win7,Win XP(SDK avaliable), Linux

Cards



ISO 14443A,Mifare One S50,Mifare One S70,Mifare One Mini,Mifare Ultra Light,Desfire,Mifare Plus,

ISO1443-4(T=CL) TYPE A dual interface CPU card

ISO14443 B Sony felica card
