Welcome to Shenzhen ZCS Technology Co., Ltd !
产品名称:

ZCS90

上市日期: 2019-06-18

ZCS90 is a programmable magnetic card reader, specialized for magnetic card read and transmit information. This product USES the F2F decoding magnetic card, magnetic card decode functions and data support for two-way charge,

产品类别: Card Reader
  • Features
  • Specification
  • Accessories
  • Download
  • Video
  • Links

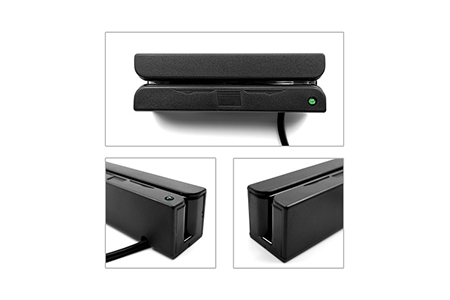

3 Track Programmable Magnetic Stripe card reader

1. Introduction

ZCS90 is a programmable magnetic card reader, specialized for magnetic card read and transmit information. This product USES the F2F decoding magnetic card, magnetic card decode functions and data support for two-way charge, according to different user requirements, can be read magnetic card 1, 2, 3 track information,Support reading high and low magnetic stripe, fully meet IBM、DIN、ISO7810/12/13、ANSL/ISO technical standards, simulation with a USB HID, keyboard, USB OTG or RS_232 serial port (customizable) output. Support the JPOS & OPOS interface.

2. Feature

1. Compatible with Windows, Android System.

2. All 3 tracks can set to 75/210 BPI;

3. USB or Serial interface or customized.

4. Long service life (500,000 card passes).

5. Suitable for all ISO7811/7812, ANSI,

AAMVA and CA DMV magnetic cards.


Mode

ZCS90UZCS90R

Reference Standards

ISO 7811,AMMVA,CADMV and other format

Swipe speed

3 ~ 60 in/s

Interface

USB2.0,really Plug and Play,can customize USB OTG or RS-232

Magnetic head

A single head

Track

1/2/3 tracks

Operating Temperature

-20~60

Storage Temperature

-20~60

Relative Humidity

90% non- condensing

Operating Life

approx. 500,000 passes

Size

ZCS90

90mm(L) X 27mm(W) X 28mm(H)

Weight

ZCS90

75g(ZCS90U)85g(ZCS90R)

Color

black

Read error rate

<0.5%

Warranty

One-year
