Z70

上市日期: 2019-06-18

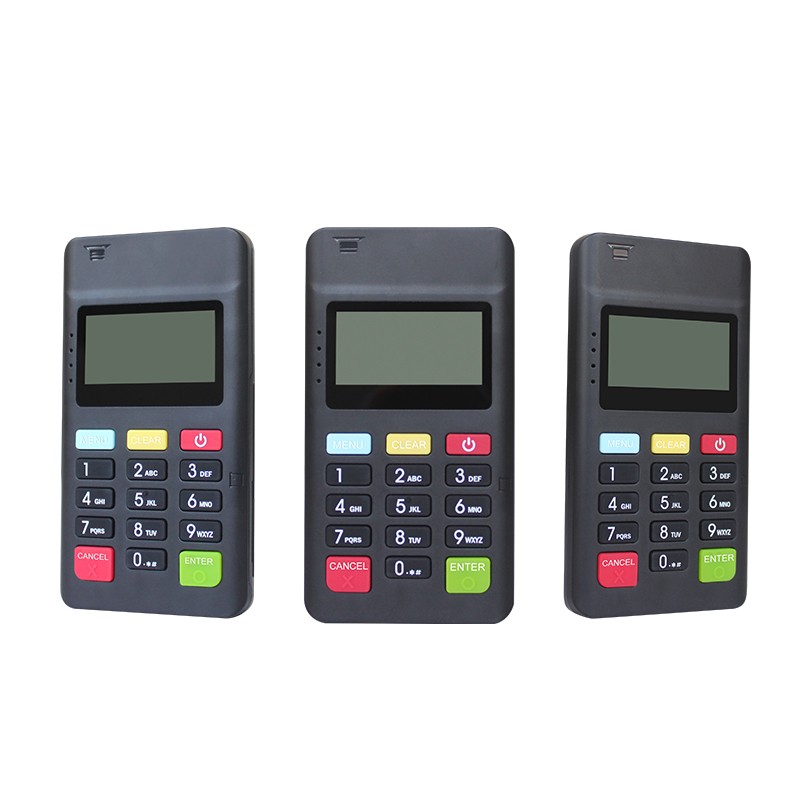

Z70 MPOS with physical keyboard, 1.77 inch TFT LCD screen, supporting magnetic card, smart card, RFID card, through Bluetooth and mobile terminal communication. Pocket size, easy to carry, with a password keyboard, safe and reliable. Colorful LCD screen, Appearance three-layer design, multicolor case.

Product category: MPOS
  • Features
  • Specification
  • Accessories
  • Download
  • Video
  • Links

1. Introduction

Z70 is a MPOS with physical keyboard and 1.77 inch TFT LCD screen.It supports magnetic card,IC card and RFID card.Through bluetooth and mobile terminal,Z70 is able to achieve secure transactions.Pocket size,compact,secure and reliable.It’s the best choice for you.

2. Feature

l Pocket size,compact,easy to carry

l Physical keyboard and tamper device for user’s security

l Low power consumption,200mAh Li-ion battery,long standby time

l 1.77 inch TFT LCD screen for display

l With Built-in buzzer and 4 LED indicator for error alerts




Technical Specification

Items

Parameters

CPU

Secure Processor

Screen

1.77 inch TFT

Magnetic Card reader

1/2/3 track, bidirectional swipe, ISO 7811/

IC card reader writer

ISO 7816

Contactless card reader

Support ISO/IEC 14443 Type A&B、Mifare,felica card, Compliant with Requirements of EMV/qPBOC、PAYPASS

SAM Slot

1 pcs

USB interface

USB charging port

Communication

Bluetooth communication,compatible with Bluetooth 2.1,4.0

Password keyboard

With physical keyboard

Support DES,3DES,RSA,SHA-256 and AES etc. algorithms

Battery

Lithium battery: 500mAh,3.7V

Power adapter

Input:110V~240V AC/50~60Hz

Output:5V DC/2A

Universal Micro USB interface

Dimension

125mm×60mm×15.5mm

  Certification

EMV/PBOC3.0  L1&L2 certification

EMV/qPBOC3.0  L1&L2 certification
